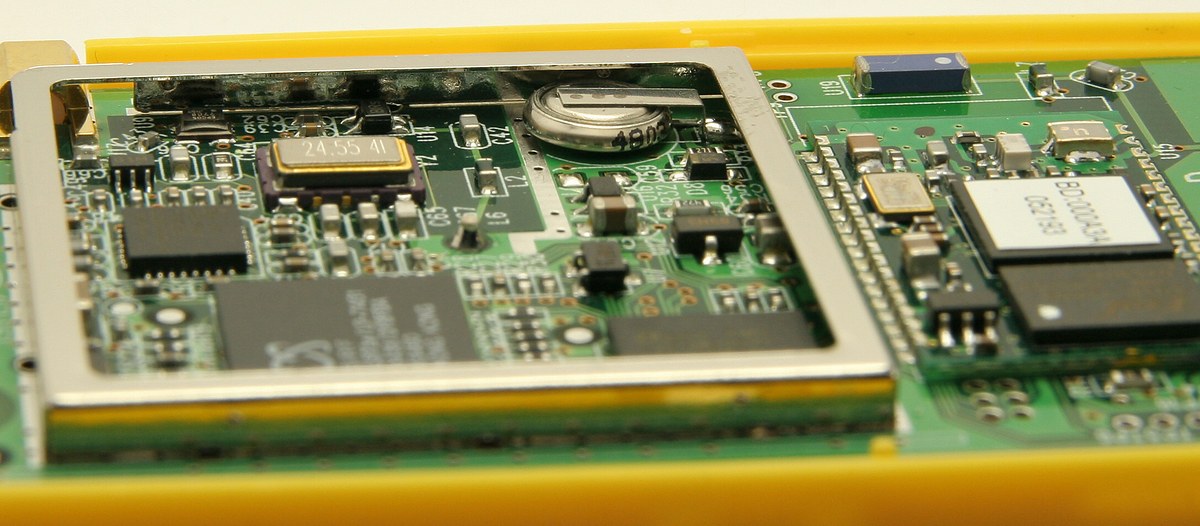

Side view of memory backup coin cell. Battery top terminal is V- (gnd). Battery bottom & edge is V+. Pressing the battery down or sideways shorts V+ to ground.     BL05           photo by John Beale
