DV343-Optical-Out

RightMark Audio Analyzer test


Testing chain: Pioneer DV-343 player, SPDIF optical out
Sampling mode: 16-bit, 44 kHz




Summary

Frequency response (from 40 Hz to 15 kHz), dB: +0.00, -0.04Excellent
Noise level, dB (A): -96.5Excellent
Dynamic range, dB (A): 96.3Excellent
THD, %: 0.0004Excellent
IMD, %: 0.030Good
Stereo crosstalk, dB: -96.8Excellent
IMD at 10 kHz, %: 0.0046Excellent

General performance: Excellent

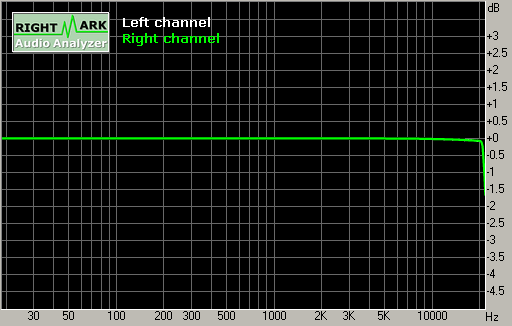

Frequency response

Spectrum graph


Frequency range Response
From 20 Hz to 20 kHz, dB-0.07, +0.00
From 40 Hz to 15 kHz, dB-0.04, +0.00

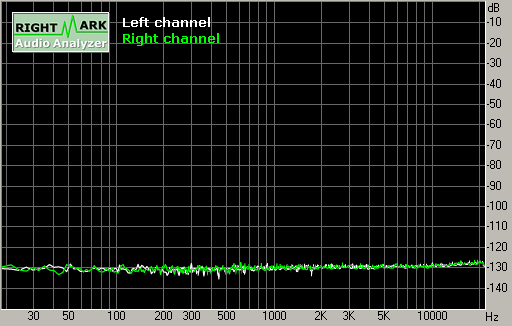

Noise level

Spectrum graph


Parameter Left Right
RMS power, dB:-94.7-94.7
RMS power (A-weighted), dB:-96.5-96.5
Peak level, dB FS:-83.3-83.3
DC offset, %:-0.00-0.00




Dynamic range

Spectrum graph


Parameter Left Right
Dynamic range, dB:+95.0+94.9
Dynamic range (A-weighted), dB:+96.4+96.3
DC offset, %:-0.00-0.00

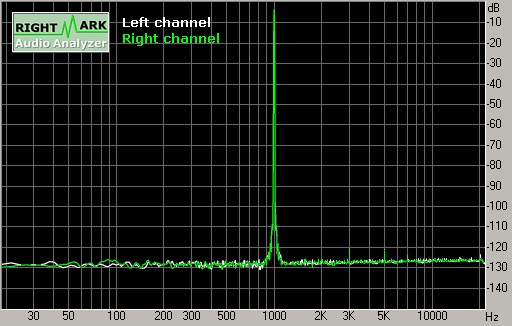

THD + Noise (at -3 dB FS)

Spectrum graph


Parameter Left Right
THD, %:0.00050.0004
THD + Noise, %:0.01690.0169
THD + Noise (A-weighted), %:0.01850.0185




Intermodulation distortion

Spectrum graph


Parameter Left Right
IMD + Noise, %:0.02960.0297
IMD + Noise (A-weighted), %:0.02950.0296

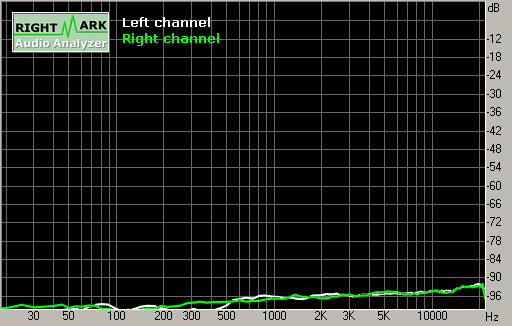

Stereo crosstalk

Spectrum graph


Parameter L <- R L -> R
Crosstalk at 100 Hz, dB:-99-100
Crosstalk at 1 kHz, dB:-95-96
Crosstalk at 10 kHz, dB:-93-93

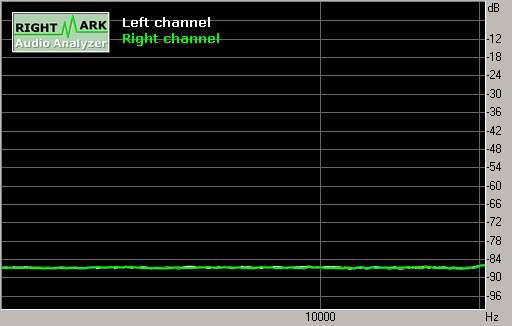

IMD (swept tones)

Spectrum graph


Parameter Left Right
IMD + Noise at 5 kHz, %:0.00460.0045
IMD + Noise at 10 kHz, %:0.00470.0047
IMD + Noise at 15 kHz, %:0.00460.0046

This report was generated by RightMark Audio Analyzer 5.4
