DV343-to-HHB

RightMark Audio Analyzer test


Testing chain: DVD line out to HHB line in
Sampling mode: 16-bit, 44 kHz

CD-R with test tones played back in Pioneer DV-343 DVD player.
Line out to Behringer UB802 tape in (unbal), master out to HHB portadisc line in (bal)
no MD recording, just direct USB audio to PC (CoolEdit 2k)




Summary

Frequency response (from 40 Hz to 15 kHz), dB: +0.05, -0.35Very good
Noise level, dB (A): -89.0Good
Dynamic range, dB (A): 88.4Good
THD, %: 0.0025Excellent
IMD, %: 0.013Very good
Stereo crosstalk, dB: -85.2Excellent
IMD at 10 kHz, %: 0.024Good

General performance: Very good

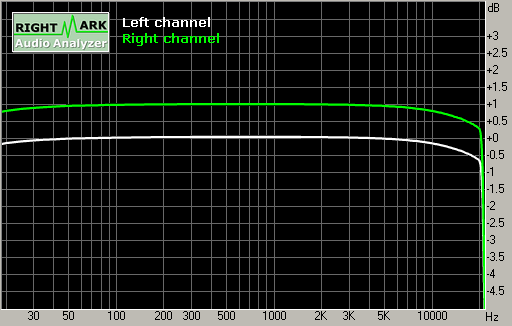

Frequency response

Spectrum graph


Frequency range Response
From 20 Hz to 20 kHz, dB-0.62, +0.05
From 40 Hz to 15 kHz, dB-0.35, +0.05




Noise level

Spectrum graph


Parameter Left Right
RMS power, dB:-87.9-87.3
RMS power (A-weighted), dB:-89.0-88.4
Peak level, dB FS:-74.2-74.2
DC offset, %:-0.00-0.00

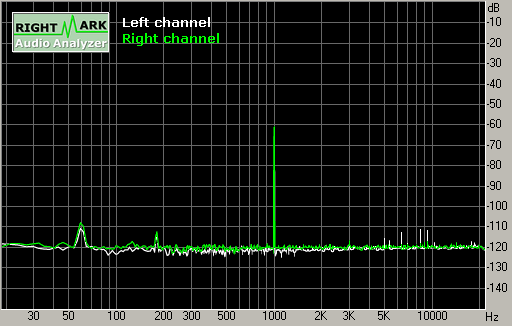

Dynamic range

Spectrum graph


Parameter Left Right
Dynamic range, dB:+87.9+87.4
Dynamic range (A-weighted), dB:+89.0+88.4
DC offset, %:-0.00-0.00

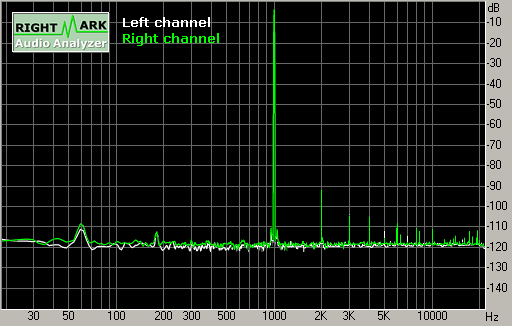

THD + Noise (at -3 dB FS)

Spectrum graph


Parameter Left Right
THD, %:0.00250.0039
THD + Noise, %:0.00980.0100
THD + Noise (A-weighted), %:0.00900.0098

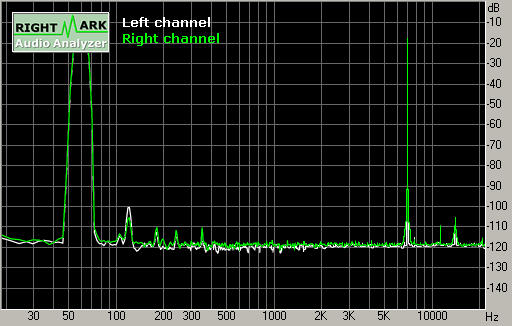

Intermodulation distortion

Spectrum graph


Parameter Left Right
IMD + Noise, %:0.01250.0132
IMD + Noise (A-weighted), %:0.01110.0121

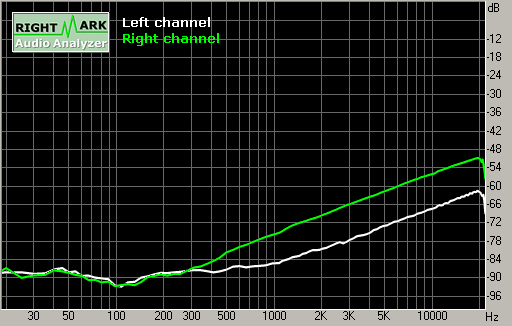

Stereo crosstalk

Spectrum graph


Parameter L <- R L -> R
Crosstalk at 100 Hz, dB:-92-92
Crosstalk at 1 kHz, dB:-84-75
Crosstalk at 10 kHz, dB:-66-55

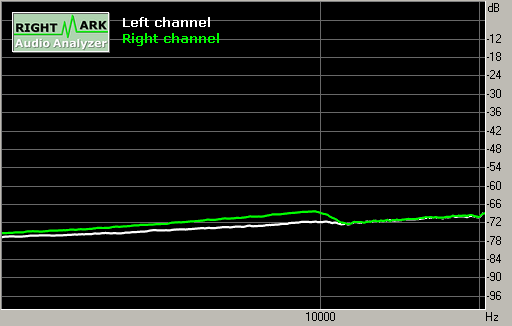

IMD (swept tones)

Spectrum graph


Parameter Left Right
IMD + Noise at 5 kHz, %:0.01890.0241
IMD + Noise at 10 kHz, %:0.02570.0364
IMD + Noise at 15 kHz, %:0.02860.0289

This report was generated by RightMark Audio Analyzer 5.4
