DVX100

RightMark Audio Analyzer test


Testing chain: line input, firewire out
Sampling mode: 16-bit, 48 kHz

+4 dBu from Echo Mia via XLR inputs, DVX pots straight up, ALC off




Summary

Frequency response (from 40 Hz to 15 kHz), dB: +2.25, -10.36Very poor
Noise level, dB (A): -83.6Good
Dynamic range, dB (A): 79.0Average
THD, %: 0.127Average
IMD, %: 0.040Good
Stereo crosstalk, dB: -81.8Very good

General performance: Average

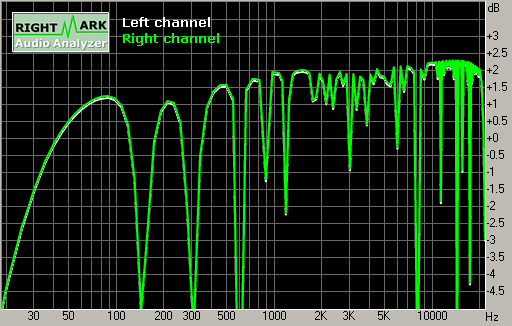

Frequency response

Spectrum graph


Frequency range Response
From 20 Hz to 20 kHz, dB-10.36, +2.25
From 40 Hz to 15 kHz, dB-10.36, +2.25

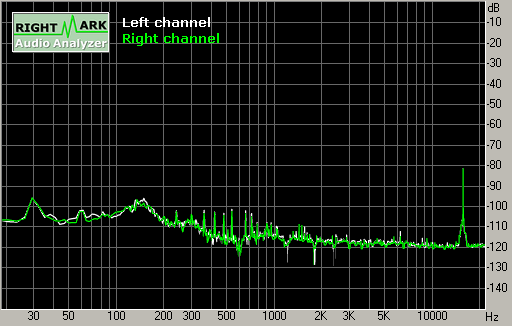

Noise level

Spectrum graph


Parameter Left Right
RMS power, dB:-79.5-79.8
RMS power (A-weighted), dB:-83.3-83.6
Peak level, dB FS:-66.8-65.7
DC offset, %:-0.00-0.00

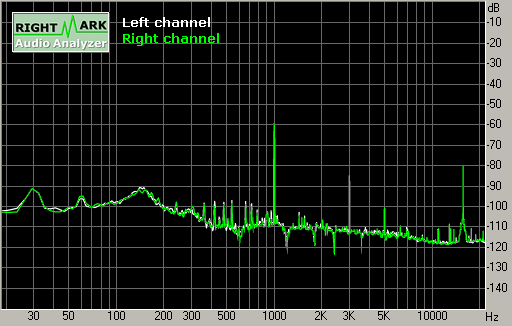

Dynamic range

Spectrum graph


Parameter Left Right
Dynamic range, dB:+76.7+77.0
Dynamic range (A-weighted), dB:+79.0+79.2
DC offset, %:-0.00-0.00

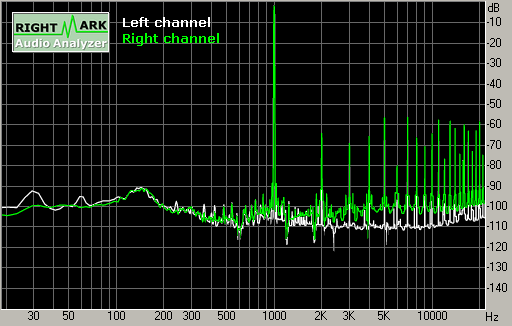

THD + Noise (at -3 dB FS)

Spectrum graph


Parameter Left Right
THD, %:0.1270.427
THD + Noise, %:0.1390.484
THD + Noise (A-weighted), %:0.1070.397




Intermodulation distortion

Spectrum graph


Parameter Left Right
IMD + Noise, %:0.0410.040
IMD + Noise (A-weighted), %:0.0290.027

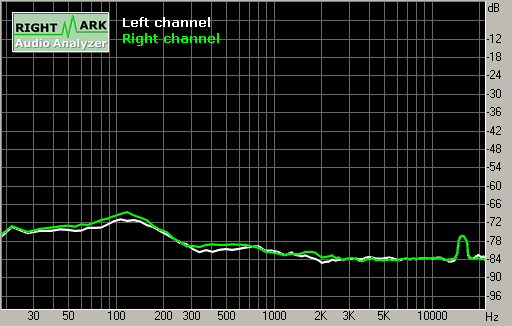

Stereo crosstalk

Spectrum graph


Parameter L <- R L -> R
Crosstalk at 100 Hz, dB:-70-69
Crosstalk at 1 kHz, dB:-80-81
Crosstalk at 10 kHz, dB:-83-83

This report was generated by RightMark Audio Analyzer 5.3
