FP895-line40

measured by John Beale July 11 2006


Testing chain: FP895 Linein Level=40  input: 0 dBV
Sampling mode: 16-bit, 44 kHz 320 kbps


Summary

Frequency response (from 40 Hz to 15 kHz), dB: +0.18, -1.55 Average
Noise level, dB (A): -92.9 Very good
Dynamic range, dB (A): 88.0 Good
THD, %: 0.074 Average
IMD + Noise, %: 0.362 Average
Stereo crosstalk, dB: -86.9 Excellent
IMD at 10 kHz, %: 48.767 Very poor

General performance: Good

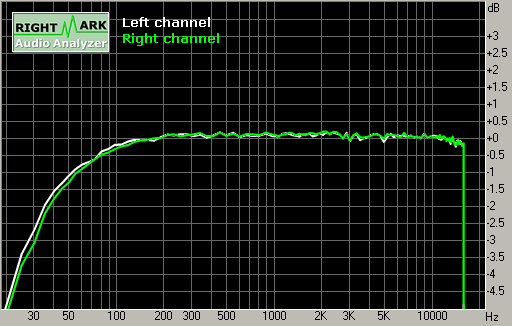

Frequency response

Spectrum graph


Frequency range Response
From 20 Hz to 20 kHz, dB -83.87, +0.18
From 40 Hz to 15 kHz, dB -1.55, +0.18

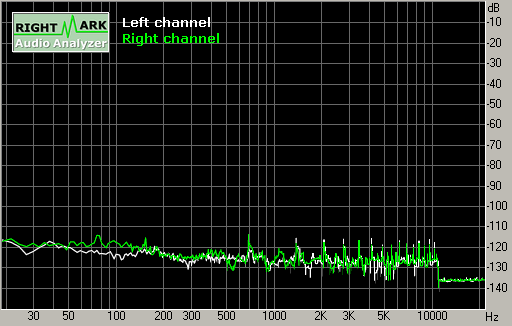

Noise level

Spectrum graph


Parameter Left Right
RMS power, dB: -93.4 -93.0
RMS power (A-weighted), dB: -92.9 -92.6
Peak level, dB FS: -78.9 -77.2
DC offset, %: -0.00 -0.00

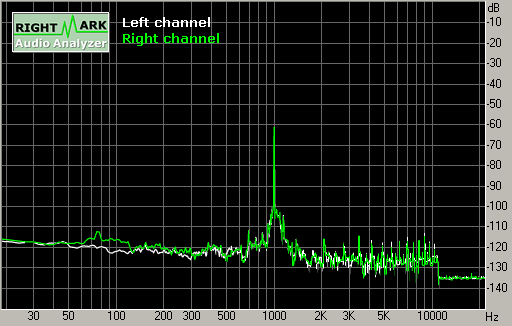

Dynamic range

Spectrum graph


Parameter Left Right
Dynamic range, dB: +88.7 +88.7
Dynamic range (A-weighted), dB: +88.0 +88.0
DC offset, %: -0.00 -0.00

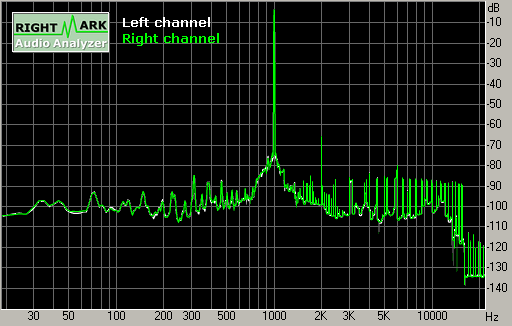

THD + Noise (at -3 dB FS)

Spectrum graph


Parameter Left Right
THD, %: 0.0742 0.0764
THD + Noise, %: 0.1612 0.1671
THD + Noise (A-weighted), %: 0.1807 0.1875

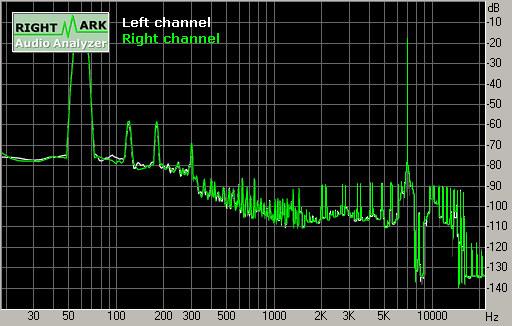

Intermodulation distortion

Spectrum graph


Parameter Left Right
IMD + Noise, %: 0.3625 0.4182
IMD + Noise (A-weighted), %: 0.1518 0.1650

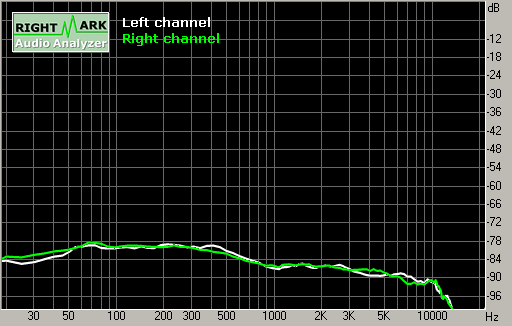

Stereo crosstalk

Spectrum graph


Parameter L <- R L -> R
Crosstalk at 100 Hz, dB: -79 -79
Crosstalk at 1 kHz, dB: -86 -85
Crosstalk at 10 kHz, dB: -90 -90

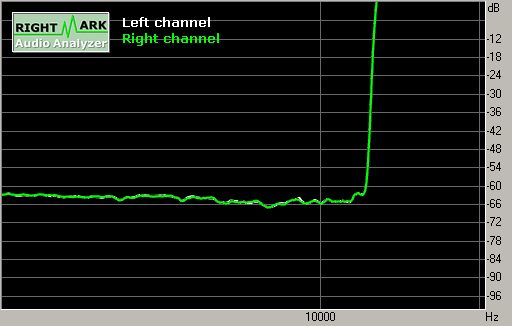

IMD (swept tones)

Spectrum graph


Parameter Left Right
IMD + Noise at 5 kHz, %: 0.0699 0.0678
IMD + Noise at 10 kHz, %: 0.0517 0.0512
IMD + Noise at 15 kHz, %: 146.1783 150.9195

This report was generated by RightMark Audio Analyzer 5.5  July 11 2006
