Sony HDR-FX1, line in

RightMark Audio Analyzer test


Source: CD playback from Pioneer DV-343 player, line out
Camcorder audio mode: 16-bit, 48 kHz

FX1 manual audio level wheel set at "3" out of 10.
Anything higher and the effect of some kind of limiter shows up,
arguably a good feature to prevent clipping, but complicates testing.



Summary

Frequency response (from 40 Hz to 15 kHz), dB: +0.23, -4.19Poor
Noise level, dB (A): -92.5Very good
Dynamic range, dB (A): 92.4Very good
THD, %: 0.233Poor
IMD, %: 0.239Average
Stereo crosstalk, dB: -92.3Excellent
IMD at 10 kHz, %: 0.260Average

General performance: Good

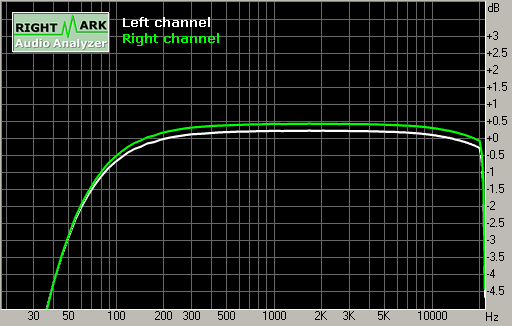

Frequency response

Spectrum graph


Frequency range Response
From 20 Hz to 20 kHz, dB-12.04, +0.23
From 40 Hz to 15 kHz, dB-4.19, +0.23

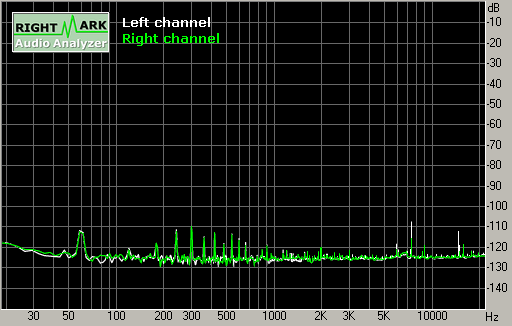

Noise level

Spectrum graph


Parameter Left Right
RMS power, dB:-91.3-91.4
RMS power (A-weighted), dB:-92.5-92.5
Peak level, dB FS:-76.3-76.3
DC offset, %:-0.00-0.00

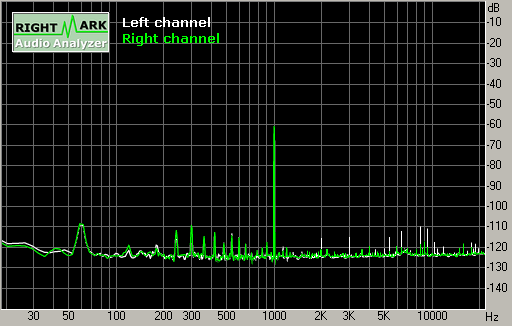

Dynamic range

Spectrum graph


Parameter Left Right
Dynamic range, dB:+91.3+91.3
Dynamic range (A-weighted), dB:+92.4+92.4
DC offset, %:-0.00-0.00

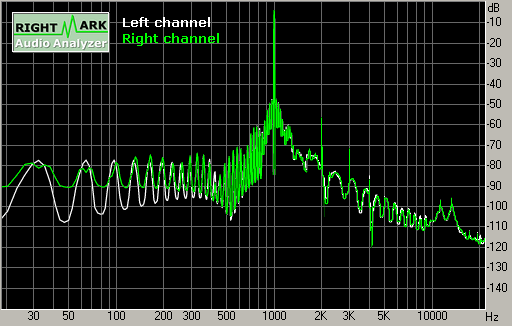

THD + Noise (at -3 dB FS)

Spectrum graph


Parameter Left Right
THD, %:0.23360.2329
THD + Noise, %:1.44871.3821
THD + Noise (A-weighted), %:1.60971.5361

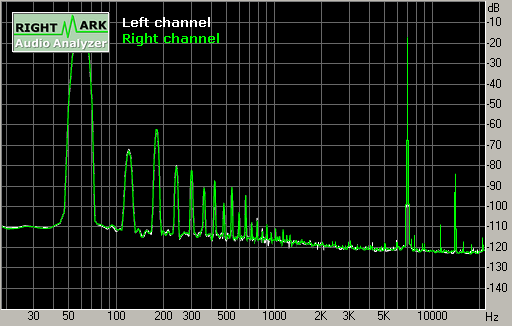

Intermodulation distortion

Spectrum graph


Parameter Left Right
IMD + Noise, %:0.23870.2442
IMD + Noise (A-weighted), %:0.14330.1490

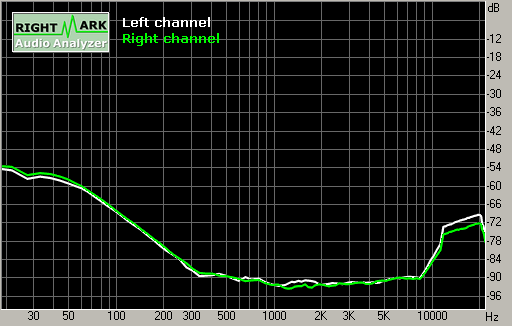

Stereo crosstalk

Spectrum graph


Parameter L <- R L -> R
Crosstalk at 100 Hz, dB:-67-67
Crosstalk at 1 kHz, dB:-91-91
Crosstalk at 10 kHz, dB:-83-84

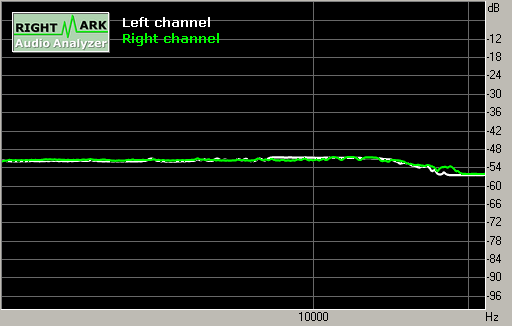

IMD (swept tones)

Spectrum graph


Parameter Left Right
IMD + Noise at 5 kHz, %:0.25910.2669
IMD + Noise at 10 kHz, %:0.29210.2627
IMD + Noise at 15 kHz, %:0.24040.2492

This report was generated by RightMark Audio Analyzer 5.4
