Echo Mia 24/96

RightMark Audio Analyzer test


Testing chain: External loopback (line-out - line-in)
Sampling mode: 24-bit, 96 kHz

July 30 2004. J.Beale




Summary

Frequency response (from 40 Hz to 15 kHz), dB: +0.02, -0.05Excellent
Noise level, dB (A): -108.9Excellent
Dynamic range, dB (A): 108.6Excellent
THD, %: 0.0021Excellent
IMD, %: 0.0036Excellent
Stereo crosstalk, dB: -106.3Excellent

General performance: Excellent

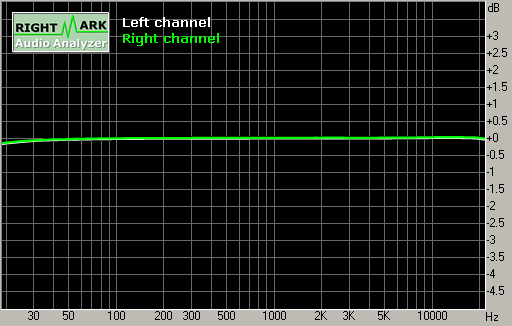

Frequency response

Spectrum graph


Frequency range Response
From 20 Hz to 20 kHz, dB-0.14, +0.02
From 40 Hz to 15 kHz, dB-0.05, +0.02

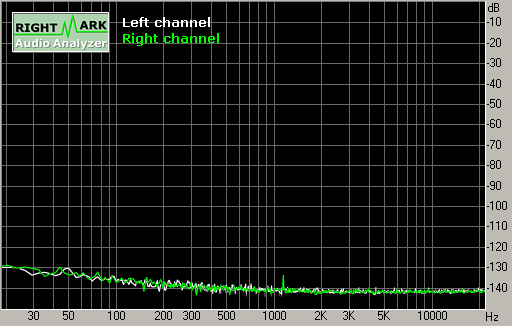

Noise level

Spectrum graph


Parameter Left Right
RMS power, dB:-99.3-99.5
RMS power (A-weighted), dB:-108.7-108.9
Peak level, dB FS:-83.3-84.6
DC offset, %:0.000.00

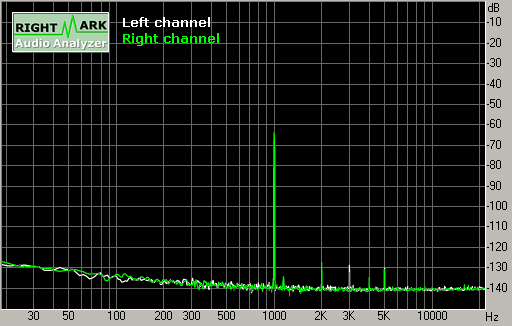

Dynamic range

Spectrum graph


Parameter Left Right
Dynamic range, dB:+101.7+101.8
Dynamic range (A-weighted), dB:+108.6+108.8
DC offset, %:-0.00-0.00

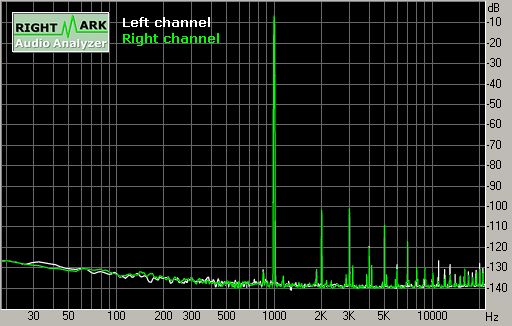

THD + Noise (at -3 dB FS)

Spectrum graph


Parameter Left Right
THD, %:0.0020.003
THD + Noise, %:0.0030.004
THD + Noise (A-weighted), %:0.0030.004




Intermodulation distortion

Spectrum graph


Parameter Left Right
IMD + Noise, %:0.0040.004
IMD + Noise (A-weighted), %:0.0020.002




Stereo crosstalk

Spectrum graph


Parameter L <- R L -> R
Crosstalk at 100 Hz, dB:-102-100
Crosstalk at 1 kHz, dB:-104-105
Crosstalk at 10 kHz, dB:-104-104

This report was generated by RightMark Audio Analyzer 5.3
