Neuros Playback

RightMark Audio Analyzer test


Testing chain: headphone output -> Echo MIA line in
Sampling mode: 16-bit, 44 kHz

headphone volume set 3 bars below full
Aug. 3 2004 J.Beale




Summary

Frequency response (from 40 Hz to 15 kHz), dB: +0.03, -0.19Very good
Noise level, dB (A): -85.4Good
Dynamic range, dB (A): 85.3Good
THD, %: 0.0039Very good
IMD, %: 0.020Good
Stereo crosstalk, dB: -85.4Excellent

General performance: Very good

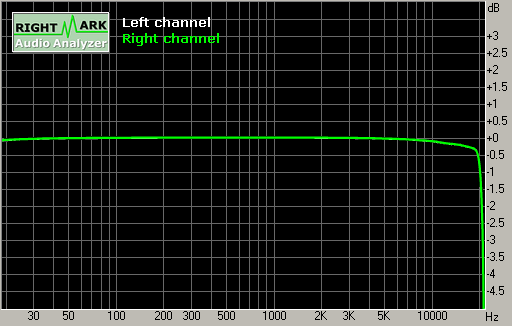

Frequency response

Spectrum graph


Frequency range Response
From 20 Hz to 20 kHz, dB-0.58, +0.03
From 40 Hz to 15 kHz, dB-0.19, +0.03

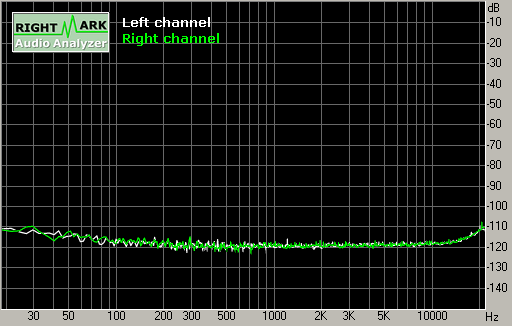

Noise level

Spectrum graph


Parameter Left Right
RMS power, dB:-82.0-82.0
RMS power (A-weighted), dB:-85.3-85.4
Peak level, dB FS:-68.9-68.6
DC offset, %:-0.00-0.00

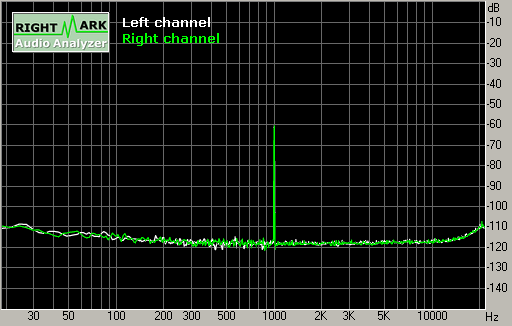

Dynamic range

Spectrum graph


Parameter Left Right
Dynamic range, dB:+81.9+81.9
Dynamic range (A-weighted), dB:+85.3+85.3
DC offset, %:-0.00-0.00




THD + Noise (at -3 dB FS)

Spectrum graph


Parameter Left Right
THD, %:0.0040.006
THD + Noise, %:0.0170.017
THD + Noise (A-weighted), %:0.0120.013

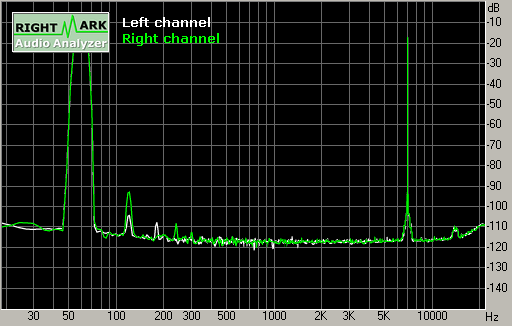

Intermodulation distortion

Spectrum graph


Parameter Left Right
IMD + Noise, %:0.0200.021
IMD + Noise (A-weighted), %:0.0140.015

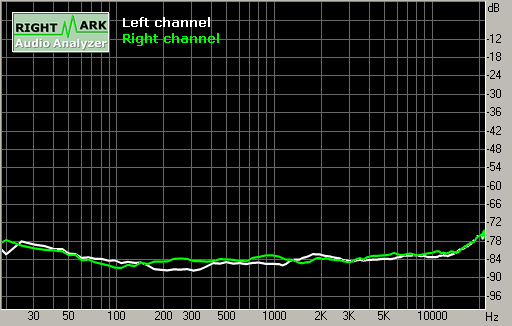

Stereo crosstalk

Spectrum graph


Parameter L <- R L -> R
Crosstalk at 100 Hz, dB:-83-86
Crosstalk at 1 kHz, dB:-84-82
Crosstalk at 10 kHz, dB:-82-81

This report was generated by RightMark Audio Analyzer 5.3
