Ogg-Q6

RightMark Audio Analyzer test


Testing chain: digital conversion wav-ogg-wav
Sampling mode: 16-bit, 44 kHz

OggEnc v1.0.1 (libvorbis 1.0.1) encoding -q6




Summary

Frequency response (from 40 Hz to 15 kHz), dB: +0.26, -0.29Good
Noise level, dB (A): -97.1Excellent
Dynamic range, dB (A): 92.5Very good
THD, %: 0.0002Excellent
IMD, %: 0.649Poor
Stereo crosstalk, dB: -97.8Excellent

General performance: Very good

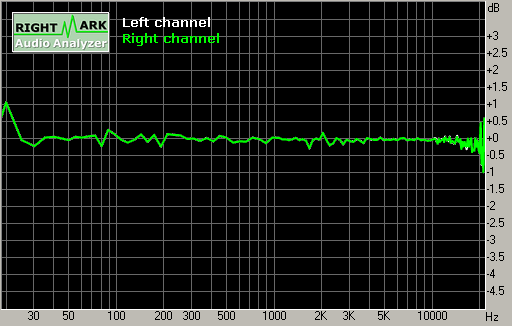

Frequency response

Spectrum graph


Frequency range Response
From 20 Hz to 20 kHz, dB-0.35, +1.06
From 40 Hz to 15 kHz, dB-0.29, +0.26

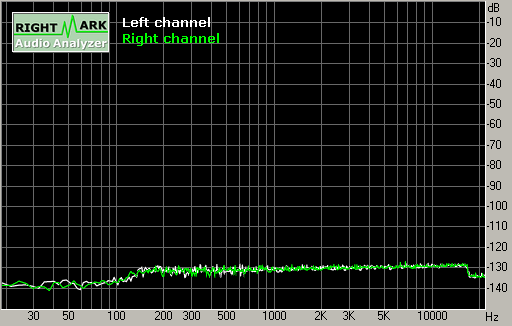

Noise level

Spectrum graph


Parameter Left Right
RMS power, dB:-96.2-96.1
RMS power (A-weighted), dB:-97.1-97.0
Peak level, dB FS:-84.3-84.3
DC offset, %:-0.000.00

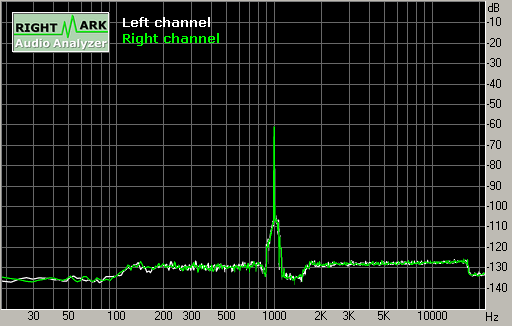

Dynamic range

Spectrum graph


Parameter Left Right
Dynamic range, dB:+92.6+92.9
Dynamic range (A-weighted), dB:+92.5+92.8
DC offset, %:-0.000.00

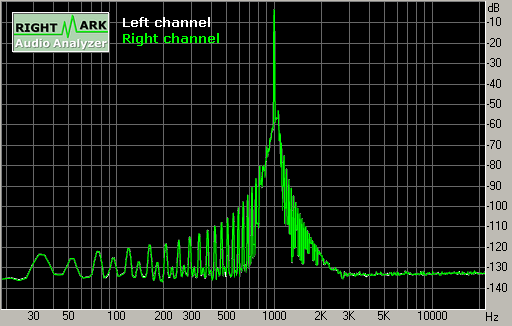

THD + Noise (at -3 dB FS)

Spectrum graph


Parameter Left Right
THD, %:0.0000.000
THD + Noise, %:0.8310.827
THD + Noise (A-weighted), %:0.9330.930




Intermodulation distortion

Spectrum graph


Parameter Left Right
IMD + Noise, %:0.6490.651
IMD + Noise (A-weighted), %:0.3110.311




Stereo crosstalk

Spectrum graph


Parameter L <- R L -> R
Crosstalk at 100 Hz, dB:-103-106
Crosstalk at 1 kHz, dB:-96-97
Crosstalk at 10 kHz, dB:-94-94

This report was generated by RightMark Audio Analyzer 5.3
