WAV

RightMark Audio Analyzer test


Testing chain: original WAV
Sampling mode: 16-bit, 44 kHz

theoretical limit of 16-bit WAV file




Summary

Frequency response (from 40 Hz to 15 kHz), dB: +0.00, -0.00Excellent
Noise level, dB (A): -97.8Excellent
Dynamic range, dB (A): 97.7Excellent
THD, %: 0.0003Excellent
IMD, %: 0.0037Excellent
Stereo crosstalk, dB: -98.7Excellent

General performance: Excellent

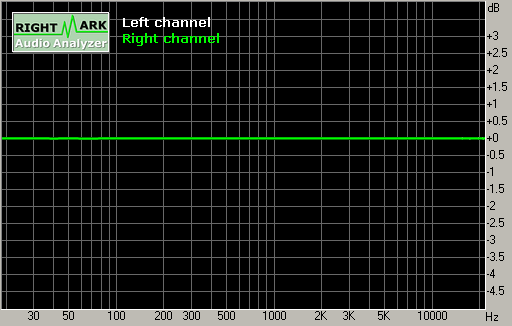

Frequency response

Spectrum graph


Frequency range Response
From 20 Hz to 20 kHz, dB-0.00, +0.00
From 40 Hz to 15 kHz, dB-0.00, +0.00




Noise level

Spectrum graph


Parameter Left Right
RMS power, dB:-96.4-96.3
RMS power (A-weighted), dB:-97.8-97.7
Peak level, dB FS:-90.3-90.3
DC offset, %:-0.000.00

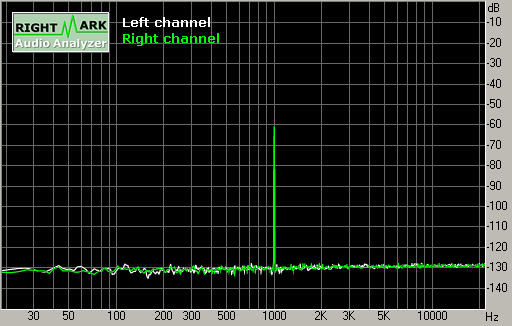

Dynamic range

Spectrum graph


Parameter Left Right
Dynamic range, dB:+96.3+96.4
Dynamic range (A-weighted), dB:+97.7+97.8
DC offset, %:-0.000.00

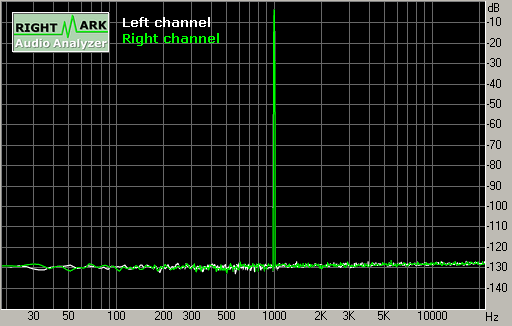

THD + Noise (at -3 dB FS)

Spectrum graph


Parameter Left Right
THD, %:0.0000.000
THD + Noise, %:0.0030.003
THD + Noise (A-weighted), %:0.0030.003

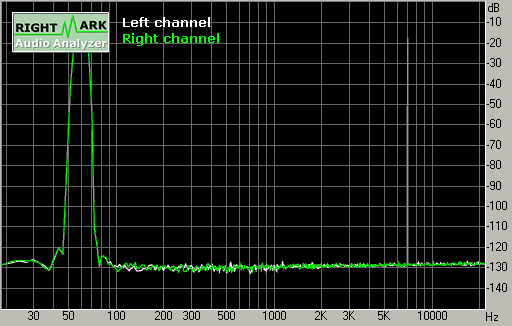

Intermodulation distortion

Spectrum graph


Parameter Left Right
IMD + Noise, %:0.0040.004
IMD + Noise (A-weighted), %:0.0030.003




Stereo crosstalk

Spectrum graph


Parameter L <- R L -> R
Crosstalk at 100 Hz, dB:-101-102
Crosstalk at 1 kHz, dB:-97-98
Crosstalk at 10 kHz, dB:-95-95

This report was generated by RightMark Audio Analyzer 5.3
