iRiver FP890T line-input

RightMark Audio Analyzer test

tested on June 21 2006 by J. Beale

Echo Audio Mia line-out (-10 dBV) to iRiver line-in (rec level 35)
Rec mode: 44.1 kHz, 320kbps mp3 converted in PC to 16-bit WAV




Summary

Frequency response (from 40 Hz to 15 kHz), dB: +0.19, -1.22 Average
Noise level, dB (A): -99.2 Excellent
Dynamic range, dB (A): 86.3 Good
THD, %: 0.088 Average
IMD + Noise, %: 0.356 Average
Stereo crosstalk, dB: -92.6 Excellent
IMD at 10 kHz, %: 0.143 Average

General performance: Good

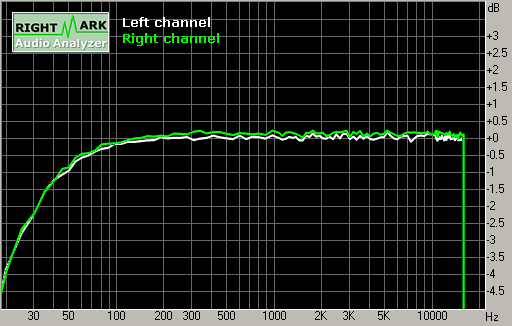

Frequency response

Spectrum graph


Frequency range Response
From 20 Hz to 20 kHz, dB -80.63, +0.19
From 40 Hz to 15 kHz, dB -1.22, +0.19

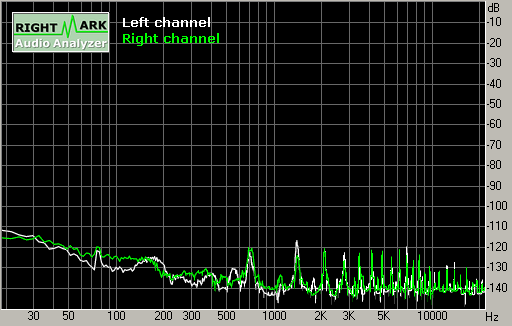

Noise level

Spectrum graph


Parameter Left Right
RMS power, dB: -99.5 -98.9
RMS power (A-weighted), dB: -99.2 -98.8
Peak level, dB FS: -83.2 -83.2
DC offset, %: -0.00 -0.00

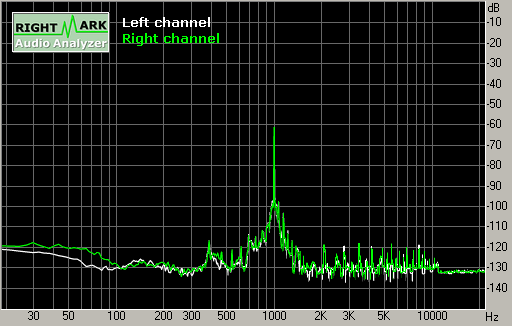

Dynamic range

Spectrum graph


Parameter Left Right
Dynamic range, dB: +87.1 +87.3
Dynamic range (A-weighted), dB: +86.3 +86.5
DC offset, %: -0.00 -0.00

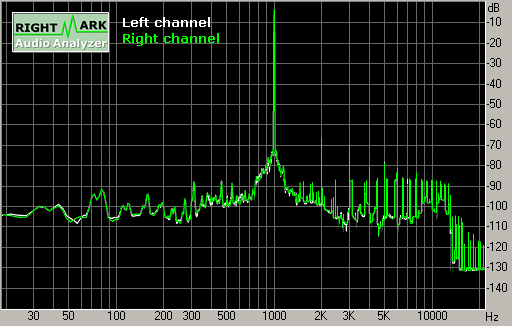

THD + Noise (at -3 dB FS)

Spectrum graph


Parameter Left Right
THD, %: 0.0903 0.0879
THD + Noise, %: 0.1856 0.1881
THD + Noise (A-weighted), %: 0.2111 0.2133

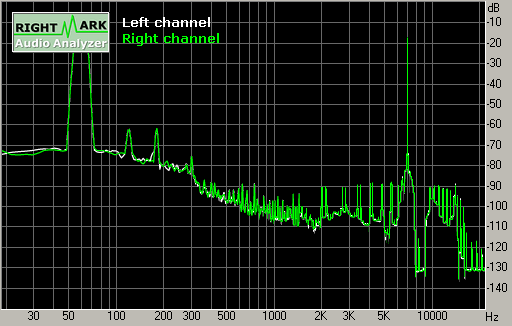

Intermodulation distortion

Spectrum graph


Parameter Left Right
IMD + Noise, %: 0.3573 0.3556
IMD + Noise (A-weighted), %: 0.1823 0.1817

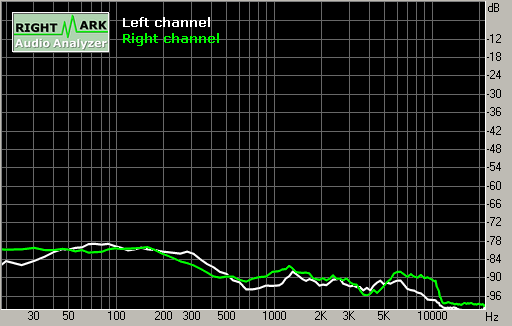

Stereo crosstalk

Spectrum graph


Parameter L <- R L -> R
Crosstalk at 100 Hz, dB: -79 -79
Crosstalk at 1 kHz, dB: -92 -87
Crosstalk at 10 kHz, dB: -96 -90

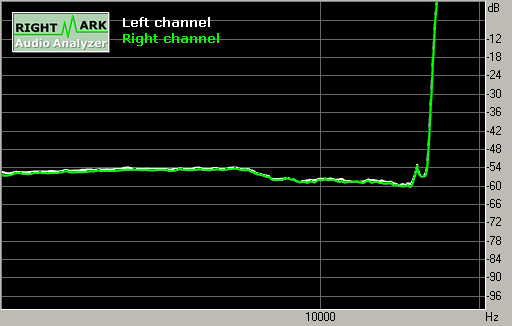

IMD (swept tones)

Spectrum graph


Parameter Left Right
IMD + Noise at 5 kHz, %: 0.1906 0.1846
IMD + Noise at 10 kHz, %: 0.1316 0.1254
IMD + Noise at 15 kHz, %: 0.1299 0.1185

This report was generated by RightMark Audio Analyzer 5.4
